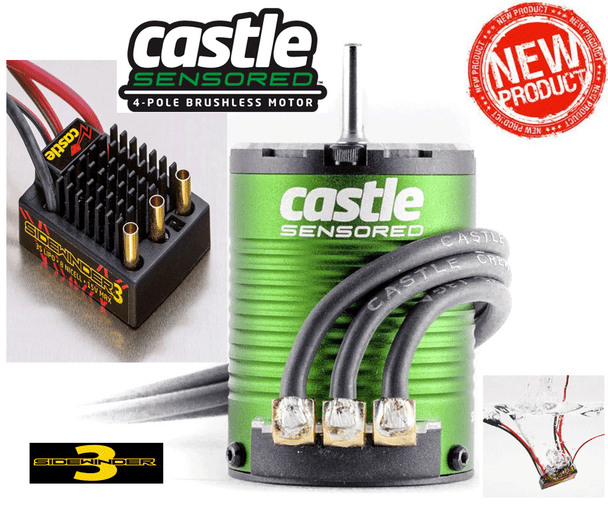

Castle Creations SV3 Waterproof 12v ESC w/ 1406-7700kV Sensored Brushless Motor

This is the Castle Creations Sidewinder SV3 12V Electronic Speed Control
and 1406 7700Kv Sensored Brushless Motor.
**NOT for use in 4WD short course trucks.**
**Sensored capabilities of this motor cannot be utlized with the Sidewinder SCT.**
**If sensored operation is required, a sensored ESC like the Castle Mamba X must be used.**

FEATURES:
Sidewinder SV3 12V ESC
Recommended for 1/10th scale on-road cars for 2S use. Lighter off-road 1/10th stadium trucks and buggies with conservative gearing.
NOT for use in 2WD or 4WD short course trucks.
USB programming capability via Castle Link USB adapter
Waterproof for use in nearly every environment (not intended for operation while submerged in liquid)
Compatible with the Castle Creations 14xx series NeuCastle motors
Reversible with reverse lockout
1406 5700Kv Sensored Brushless Motor
Four pole configuration for maximum efficiency at high RPM

INCLUDES:
Sidewinder SV3 12V ESC with 13 gauge Battery Wires with Pre-Tinned Leads, 4mm Female Bullets for Motor Connection, Receiver Connector On/Off Switch, and Instructions 1406 7700Kv Sensored Brushless Motor with Sensor Wire

SPECIFICATIONS:
ESC;
Input Voltage: 2S LiPo minimum, 6S LiPo maximum
Brake: Proportional
Reversible: Yes, with lockout
Dimensions: 1.93 x 1.48 x 0.79" (49 x 38 x 20mm)
Weight: 1.96 oz (55.5 g) with 5" (127mm) long battery wires and no battery connector

Motor;
Input Voltage Range: 2S LiPo
Kv: 7700
Max. RPM: 100,000
Length: 49.5mm
Diameter: 36mm
Weight (w/wires): 189g / 6.7oz
Shaft Size:    Length: 15mm Diameter: 1/8" (3.17mm)
Connectors: 4mm male Castle Bullet Connectors
Max. Recommended Vehicle Weight: Up to 4lbs
