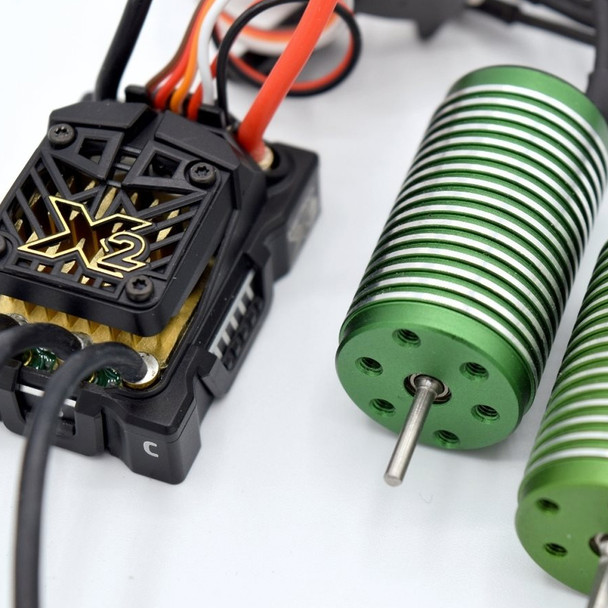

Castle Creations 010-0169-03 Mamba Micro X2/16.8V WP ESC w/ 0808-8200KV MOTOR

(No reviews yet) Write a Review
SKU:
010-0169-03
UPC:
819326012488
Condition:
New
  • Castle Creations 010-0169-03 Mamba Micro X2/16.8V WP ESC w/ 0808-8200KV MOTOR
  • Castle Creations 010-0169-03 Mamba Micro X2/16.8V WP ESC w/ 0808-8200KV MOTOR
  • Castle Creations 010-0169-03 Mamba Micro X2/16.8V WP ESC w/ 0808-8200KV MOTOR
  • Castle Creations 010-0169-03 Mamba Micro X2/16.8V WP ESC w/ 0808-8200KV MOTOR
MSRP: $152.95
$109.95
— You save $43.00

Sold Out

Description

Putting the X in Extreme!

The Mamba Micro X2 is a refresh of our popular 1:18 scale Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle.  Like its predecessor, it is waterproof* and has SENSORED MOTOR SUPPORT (included 0808 motor is sensorless).

This is the perfect upgrade for 1:18 scale RC vehicles, up to 2S LiPo and weighing in at up to 1.5lbs.

Important Product Update, 8/2/2022.
Due to ongoing supply chain disruptions, we have been unable to manufacture the Micro X2. The parts in question are integral to the onboard 2-amp BEC. In an effort to provide the Micro X2 for sale again, we have removed the internal BEC and are including our external 10-amp CC BEC (a $24 value) with every Micro X2 purchase. This upgraded BEC has a wider range of BEC voltages and much higher current capacity. The retail price for the ESC and combos has not changed. For instructions on how to install the CC BEC, please visit www.castlecreations.com/microx2BEC.

The Mamba Micro X also works well in some 1:10th scale crawlers for low speed operation (no rock racing/hill climbing). You can now purchase the Mamba Micro X2 Crawler Edition ESC paired with our Slate Crawler motors.

FEATURES:
Input Voltage range 2S-3S (with included 0808-4100Kv motor)
Waterproof design, Included CC BEC is not waterproof
Convenient transmitter programming for six common adjustable settings.
Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
Audible Alerts that will notify you of possible issues with calibrations and error conditions.
Designed and manufactured in Olathe, Kansas and is backed by our 1-year warranty.

Mamba Micro X2 w/0808-5300Kv Motor Purchase Includes:
Mamba Micro X2 ESC
External 10-amp CC BEC
0808-5300Kv Brushless Sensorless Motor
Coupon for free Castle Link USB adapter
Quick Start Guide
Castle Decals
*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.



Technical Specs Mamba Micro X2 ESC
Input Voltage Range: 2S-4S LiPo (16.8V Max) (2s LiPo max with included 0808-8200KV motor)
BEC Specifications: No internal BEC in ESC. External 10-amp CC BEC Included.
Operating Environment: Waterproof* design allows for use in nearly any environment
Brake: Proportional
Reversible: Yes, but may be disabled
On/Off Switch: Yes, waterproof
Cooling Fan: Not included
Size (L x W x H):
41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
Weight (with wires): 1.66 oz / 47 grams
Connectors: 3.5 mm bullets
Items Needed for Operation: Battery Connector required: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.
Product Use Statements:
Applying voltages higher than 16.8 volts will cause irreparable damage to your controller, voiding your warranty.
Recommended battery capacity for 1:18 scale vehicles is 1500mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
Mamba Micro X has 3.5mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.
Application Guidelines:
1:18 scale RC hobby vehicles weighing up to 1.5lbs with included 0808-8200KV motor.
Max. Recommended Vehicle Weight: 1.5 lbs, with batteries, ready-to-run
Programmability: Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.
Tech Notes:
*Although the Mamba Micro X2 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
Technical Specs 0808-8200Kv Brushless Sensorless Motor
Input Voltage Range: 2S LiPo, 4-7 cell NiMH
Kv: 8200
Max. RPM: N/A
Size: Length: 1.5" (38mm)
Diameter: 0.79" (20mm)
Weight (w/wires): 1.8 oz. (50g)
Shaft Size: Length: N/A
Diameter: 0.08" (2mm)
Mounting Hole Specifications: 2.5mm @ 1/2", 14mm, 5/8"
Cooling Fan: No
Connectors: 3.5mm gold connectors (female connectors included)
Items Needed for Operation: You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.
Product Use Statements: Max. operating temperature = 180°F (82°C)
Application Guidelines: Up to 2S LiPo and weighing in at up to 1.5lbs.
Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo)
Max. Recommended Vehicle Weight: 1.5lbs
Tech Notes: N/A
