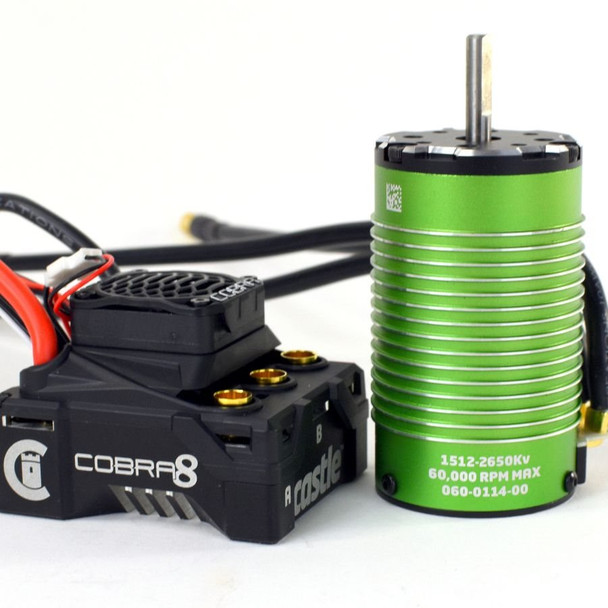

Castle Creations Cobra 8 25.2V ESC w/ 1512-2650Kv V2 Sensored Motor Combo 010-0172-05

Castle Creations Cobra 8 25.2V Waterproof ESC with 1512-2650Kv V2 Sensored Motor Combo

The Castle Creations Cobra 8 combo is a next-generation high-performance brushless power system designed for 1/8 scale surface vehicles. This combo includes the Cobra 8 waterproof ESC and Castle 1512-2650Kv V2 sensored brushless motor, making it a strong option for 1/8 scale off-road and on-road vehicles, as well as 1/10 scale 4WD short course trucks up to 9 lbs ready-to-run.

The Cobra 8 ESC features 32-bit processing for smooth motor control and fast response, advanced data logging, SmartSense operation, adjustable BEC, CRYO-DRIVE technology, and Castle Link programming. It also includes the Castle Link V4 USB adapter with USB-C connector for tuning and firmware updates.

Features:

• Includes Cobra 8 waterproof ESC and 1512-2650Kv V2 sensored motor

• Ideal for 1/8 scale off-road and on-road vehicles

• Also suitable for 1/10 scale 4WD SCT vehicles up to 9 lbs

• ESC input range: 2S–6S LiPo

• Included 1512-2650Kv motor is recommended for 3S–4S LiPo

• SmartSense, sensored only, and brushed motor operation modes

• 32-bit processing for smoother motor control and improved response

• CRYO-DRIVE technology for improved thermal performance

• Enhanced data logging with increased sample frequency and longer logging time

• Adjustable internal BEC from 5.0V–8.0V in 0.1V increments

• 8A peak BEC output

• Proportional brake

• Reverse capable; reverse can be disabled for racing

• Waterproof ESC design with rugged CNC aluminum case

• Premium forged heatsink with elliptical fins

• Factory-equipped temperature-controlled 30mm cooling fan

• Waterproof on/off switch

• Auxiliary wire functionality for on-the-fly adjustments

• Audible alerts for common issues such as motor over-temperature and low-voltage cutoff

• Transmitter programming for common settings

• Castle Link programmable with included Castle Link V4 USB adapter

• Optional B-LINK 2 Bluetooth programming, sold separately

• Designed and manufactured by Castle Creations

• Backed by Castle Creations’ 1-year warranty

ESC Specifications:

• Product Number: 010-0172-05

• ESC: Cobra 8

• Input Voltage Range: 2S–6S LiPo, 25.2V max

• Maximum Voltage with Included Motor: 4S LiPo

• BEC: Adjustable 5.0V–8.0V, 8A peak

• Default BEC Voltage: 5.5V

• Running Modes: SmartSense brushless, sensored only, brushed

• Waterproof: Yes

• Data Logging: Yes

• Auxiliary Wire: Yes

• Sensored Capable: Yes

• Telemetry Capable: No

• B-LINK Compatible: Yes

• Brake: Proportional

• Reverse: Yes, may be disabled

• On/Off Switch: Yes, waterproof

• Cooling Fan: Yes, factory-equipped 30mm temperature-controlled fan

• ESC Size: 60mm x 52mm x 43mm / 2.36" x 2.04" x 1.69"

• ESC Weight without battery connector: 5.84 oz / 165.6g

• Motor Connectors: 6.5mm female bullets

• Battery Connector: Required, not included

Motor Specifications:

• Motor: Castle 1512-2650Kv V2 Sensored Brushless Motor

• Kv: 2650Kv

• Input Voltage Range: 3S–4S LiPo

• Maximum RPM: 60,000

• Motor Length: 67.7mm

• Motor Diameter: 40mm / 41.4mm with fins

• Weight with wires: 383g / 13.6 oz

• Weight without wires: 334g

• Shaft Diameter: 5mm

• Shaft Length: 20mm

• Mounting Holes: M3 and M4 at 25mm

• Motor Connectors: 6.5mm male connectors on 10-gauge wire

• Sensor Wire: 300mm direct connect sensor wire included

• Running Modes with compatible ESC: SmartSense, sensored, and sensorless

Package Includes:

• Castle Cobra 8 ESC

• Castle 1512-2650Kv V2 sensored brushless motor

• Castle Link V4 USB adapter

• 300mm direct connect sensor wire

• Cobra decals

• ESC quick start guide

Notes:
Battery connector is required and not included. Castle recommends using a high-current connector rated for 120+ amps, such as Castle 6.5mm bullets, Castle 8.0mm bullets, or 6.5mm polarized Castle connectors.

Although the ESC and motor are waterproof, they are not intended to be fully submerged. After use in wet, dirty, or corrosive conditions, rinse with clean water and allow to fully dry. The ESC cooling fan must be removed before driving in wet conditions because the fan is not waterproof.

The sensor board is moisture protected, but sensor connections are not water resistant. Castle recommends using dielectric grease around the sensor wire connections when running in wet conditions.
