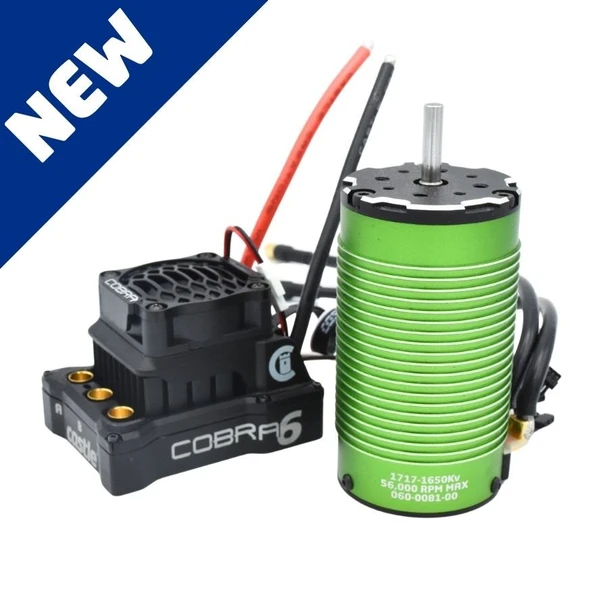

Castle Creations 1/6 Cobra 6 33.6V ESC w/ 1717-1650KV Sensored Motor 010-0184-02

The COBRA 6, 33.6V ESC W/1717-1650KV SENSORED COMBO is ready to take on any R/C vehicle weighing up to 20lbs and running up to 8S LiPo. Designed for heavy, high-performance rigs, you'll experience controllable low-end ranges, without sacrificing power, punch, or speed.

Based around our popular Monster X 8s ESC, this is a direct upgrade and replacement for the next generation of bashing. Taking the core features from its predecessor, the Cobra packs in new features thanks to its powerful 32-bit processor.

NEW FEATURES:

32-Bit Processing power for smoother motor control and improved response time.
Enhanced Data Logging includes:
Double the maximum sample frequency of older generations.
8x increased logging time of older generations.
Data point for ESC electrical motor timing.
Data point for acceleration via onboard accelerometer.
Looping feature prevents interruptions in data log recording.
Ability to download specific sessions.
Additional tuning features include:
Improved braking adjustability
Separate brake and reverse curves
Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
Optional smartphone-based programming with the B-LINK™ Bluetooth Interface (sold separately) and the Castle Link 2 App on Google Play or Apple App Store.
Mounting holes located in bottom of aluminum case for installation into vehicle. Download mounting template.
Please refer to our Surface Product Selector for recommended motor, battery and gearing for some of the more popular vehicles on the market.

KEY FEATURES:

Input Voltage Range 2S-8S LiPo
Sensorless, Sensored and SmartSense™ Running Modes
Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to  protect the electronics and promote efficient heat transfer
Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
Oversized factory equipped thermally controlled 40MM cooling fan
Waterproof design for all weather conditions
Enhanced Data logging capability to capture and record performance data from your vehicle
Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
Easily tune and update ESC with USB and Bluetooth™ programming options
Castle Link USB programming (Castle Link V4 included!)
Optional smartphone-based programming with the B-LINK 2 Bluetooth Interface (sold separately) and Castle Link 2 app available on Google Play or Apple App Store
Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty
MOTOR FEATURES:

4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
Proprietary stator winding produces low internal resistance for a cooler running motor
Dual sensor ports to ensure optimal installation in your large-scale vehicle
Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
COBRA 6, 33.6V ESC W/1717-1650KV SENSORED COMES WITH:

Cobra 6 ESC
4-POLE Sensored 1717-1650KV Motor
300mm Direct Connect Sensor Wire
Cobra Decals
ESC Quick Start Guide
Motor Quick Start Guide

The COBRA 6 is packed with a potent combination of hardware and software advancements,making it an indispensable ally in high-performance power systems.Users will benefit from the same footprint as its predecessor, the Mamba Monster X 8s, while an upgraded current-sensing and thermal protection system actively mitigates the risk of failure in aggressive or high-load setups.

New tuning parameters include adjustable braking curves and independent reverse settings to reduce the risk of broken gears, snapped driveshafts, and blown differentials, all while experiencing smoother transitions. Users will feel a more realistic and predictable driving experience while saving their drivetrain from unnecessary stress

Whether tweaking the suspension or altering tire pressure, data-driven decisions lead to optimal performance in an R/C vehicle, and the COBRA SERIES enhanced data logging includes double the maximum sample frequency of older generations, providing more granular data for analyzing performance.Gone are the days of clearing data logs—users will experience increased logging time and enjoy the new looping feature that prevents interruptions in recording. New data points for ESC electrical motor timing and acceleration via the onboard accelerometer provide insight into needed adjustments to detect tire slippage or fine-tune motor efficiency.

Access to tuning options, data logs, and firmware updates for the COBRA SERIES ESCs is available at no charge using the Castle Link V4 USB adapter included in the box and Castle Link 2 software, available for download on the Castle Creations website. Optional smartphone-based programming with the B-LINK™ 2 Bluetooth Interface (sold separately) and free Castle Link 2 app available on Google Play or Apple App Store.

ADDITIONAL FEATURES:
CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
Oversized factory equipped thermally controlled 50mm cooling fan
Waterproof design for all weather conditions
Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
Mounting holes located in bottom of aluminum case for installation into vehicle.

Technical Specs
Controller:
Input Voltage Range: MIN: 2S LiPo , MAX: 8S LiPo (33.6V)
BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Operating Environment: Waterproof* design allows for use in nearly any environment.
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes, waterproof
Cooling Fan: Yes, factory equipped (40MM), fully removable** (see Product Use Statements below)
Size (L x W x H): 2.73" x 2.13" x 1.85" (69.5mm x 54.1mm x 47mm)
Weight (with no battery connector): 5.75 oz. (163 grams)
Connectors: 6.5mm female bullets for motor connection.
Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.
Product Use Statements:
Recommended battery capacity for 1:6th scale vehicles is 5000mah. We recommend using 50C continuous discharge or higher LiPo batteries.
Surge ratings should never be used to determine a pack’s suitability for a brushless application.
We recommend a high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors.
Applying voltages higher than 33.6V will cause irreparable damage to ESC; DO NOT RUN HV CELLS (above 4.2v/cell) WHEN RUNNING AT MAX CELL COUNT (8s). This will exceed the 33.6v rating and will damage the ESC and not be covered by the warranty.
Although the Cobra 6 is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC with clean water after exposure to corrosives or dirt.
The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
Note: While many users have utilized the Cobra 6 in extremely high speed applications and drag setups, it is NOT intended for this application. As such the Castle warranty does NOT cover failure when used in high speed or drag applications.
Download full product use statement
Application Guidelines: Cobra 6 and 1717-1650Kv motor is intended for use in 1:6th scale vehicles weighing up to 20 lbs. and running up to 8S LiPo. A great upgrade for heavier 1:8th vehicles and lighter 1:6th vehicles.
Programmability:
Fully programmable Castle feature set using the included Castle Link V4 USB adapter and freely downloadable Castle Link 2 Windows™ software, or the Castle Link iOS® or Android® app with B-LINK 2™ Bluetooth™ Adapter (sold separately).

Motor Specs
Input Voltage Range: 3S-8S LiPo
Kv: 1650
Max. RPM: 56,000
Size: Length: 3.35" (85.1mm)
Diameter: 1.87" (47.6mm)
Weight (w/wires): 597.6g (21.08oz); 548g without wires
Shaft Diameter: 5mm
Mounting Hole Specifications: M3 and M4@25.4mm (1.0") Diameter
Cooling Fan: Optional, 011-0162-00
Connectors: 6.5mm male connectors
Application Guidelines:
Ideal for vehicles up to 20lbs running 6s – 8s LiPo.  Examples include Losi LST2-E; Arrma™: Limitless™, Typhon™ 6s, Infraction™, Talion™ 6s; Traxxas: E-Maxx™, E-Revo™, UDR™, Summit™; Redcat Shredder™ Note: "Recommendations based on vehicle weight and motor capabilities. Verify motor fitment, may require optional motor mount."
Tech Notes:
Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs. It is strongly recommended to not use the “Sensored Only” motor type option. The default “Smart Sense™” modes uses the sensors (if applicable motor is used) to start the motor smoothly. Once the motor is running the ESC stops using the sensors and reverts to sensorless operation. Sensorless mode is more efficient resulting in cooler temperatures and potentially higher motor performance.
Do not use mounting screws that extend more than 5mm into the front of the motor. Using too long of a screw can result in damage to the motor's windings and will not be covered by the warranty.
Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
