Castle Creations

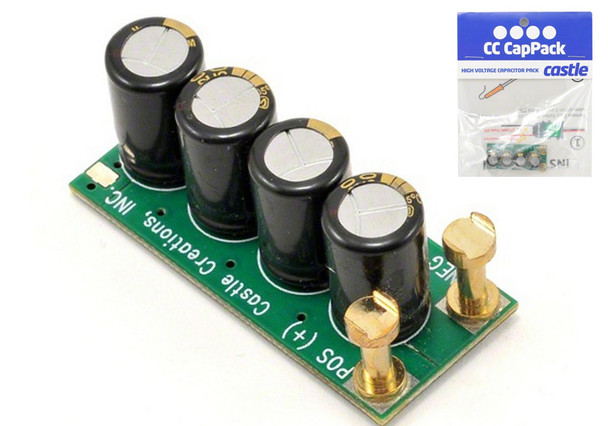

Castle Creations Capacitor pack 12S MAX (50.0V) 880UF

(No reviews yet) Write a Review
SKU:
011-0002-02
UPC:
855773002825
Condition:
New
MSRP: $29.95
$21.95
— You save $8.00

Description

Power Efficiency!

CC CapPack is useful in all brushless motor applications, where it serves to give just that little boost needed to overcome ripples in the battery voltage caused by hard acceleration or long battery wires. Ripple voltage is hard on an ESC - adding the CC CapPack can help reduce the load on the controller's on-board capacitors. The CapPack uses four 220µF, 50V capacitors totaling 880µF.

Helis:
CC CapPack is highly recommended for all 500 class and larger heli applications where Y harnesses and long wires can bleed voltage, and hard collective pulls can strain even the most powerful batteries.

Surface Vehicles:
With their high torque requirements – going from 0 to 100% throttle isn't easy on controllers or batteries - RC cars and trucks put enormous loads on brushless power systems. Use CC CapPack to help your system power through the abuse.

Fixed Wing Aircraft:
Larger electric power systems lead to larger electric powered aircraft, and sometimes the distance between the battery pack and the ESC grows beyond the length of the wires installed on the components. Adding wire also adds inductance, which can increase the ripple voltage in a system. CC CapPack essentially negates the ripple caused by the addition of up to 8 inches of length to the battery wires.

Note: All Castle controllers with data logging capabilities can report the ripple voltage they encounter during use. Ripple voltage peaks should always be less than 10% of the total pack voltage; the smaller the ripple voltage the better. If an application exhibits more than 10% ripple voltage under peak loads, the user should consider using higher discharge (C Rating) batteries, shorter wires, higher current connectors, better gearing or a smaller load.

Multiple CapPacks may be used in an application. They should all be installed as close to the ESC as possible.



Technical Specs
Size:Length: 1.8" (45.7mm)
Width: 0.78" (19.8mm)
Height: 0.7" (17.6mm)
Weight:N/A
Voltage Range:5v - 50.4v
Capacitance:880µF total
