Castle Link V4 USB Programming Kit

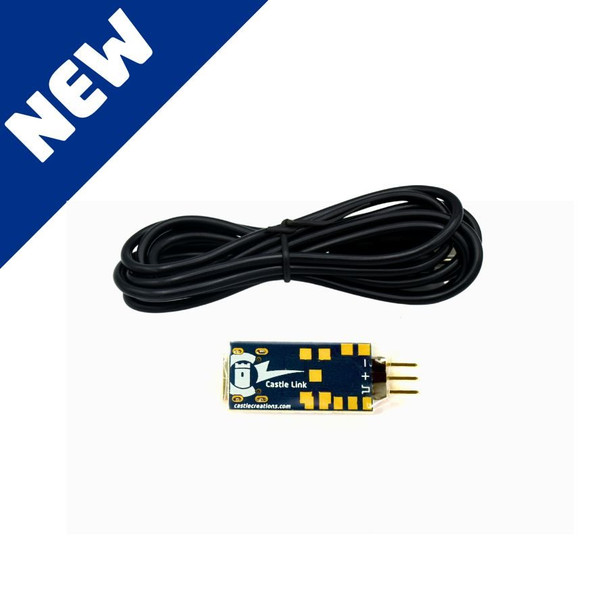

Castle Creations Castle Link V4 USB Programming Kit

The Castle Creations Castle Link V4 USB Programming Kit allows you to program compatible Castle Link devices using Castle Link 2 software on a Windows PC. This updated V4 adapter uses a 32-bit based design and connects with the included USB Type-C cable.

Castle Link makes it easy to adjust programmable settings, view current ESC settings, download and view onboard ESC data logs, and update ESC firmware when updates are available.

Features:

• Castle Link V4 32-bit USB programming adapter

• Works with Castle Link 2 software

• Compatible with all Castle Linkable devices

• Allows point-and-click programming on a Windows PC

• View current ESC/program settings

• Download and view ESC onboard data logs

• Update ESC firmware when available

• Includes USB Type-C cable

• Great tuning tool for Castle ESCs and compatible Castle Link products

System Requirements:

• Windows 10 or higher

• Castle Link 2 software

• Type-A USB port

Basic Setup:

1. Download and install Castle Link 2 software from Castle Creations.

2. Connect the Castle Link V4 adapter to the included Type-C USB cable.

3. Plug the USB cable into your Windows PC.

4. Connect your ESC receiver lead to the Castle Link V4 adapter prongs.

5. Make sure the brown wire connects to the pin marked “GND” or “-”.

Specifications:

• Product Number: 011-0173-00

• Product Type: USB Programming Kit

• Adapter Version: Castle Link V4

• Software Compatibility: Castle Link 2 only

• Device Compatibility: All Castle Linkable devices

• PC Compatibility: Windows 10 or higher

• USB Connection: Type-C cable included

• Category: PC software and programming cables

• Assembly: Assembled in the Philippines

Package Includes:

• Castle Link V4 adapter

• Type-C USB cable

• Castle decal sheet

Notes:
Castle Link V4 is compatible with Castle Link 2 software only. Software download is required and is available from Castle Creations.

A Windows PC is required for programming.
