Castle Creations Ghost RC Cobra 5 HV ACE - Drag & High Speed 12S ESC 020-0288-00

UNLEASH THE ACE. NO LIMITS. NO APOLOGIES.

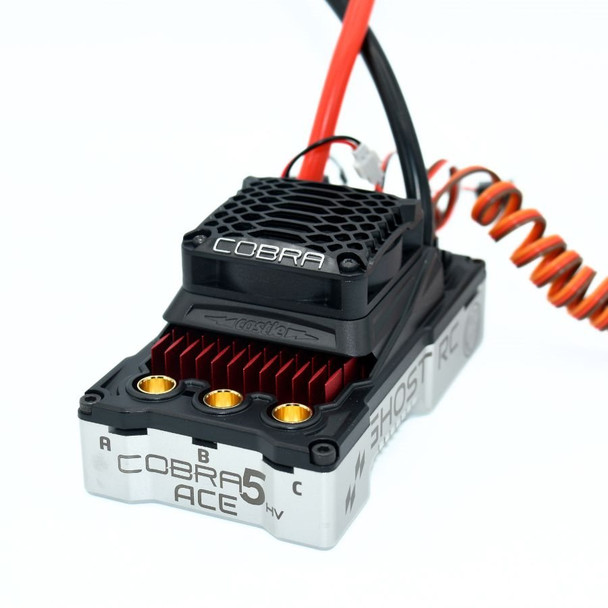

Castle is excited to continue our partnership with Ghost RC, in association with Perfect Pass, to introduce the Cobra 5 HV ACE. Based on Castle's new Cobra 5 HV ESC, the Ghost RC Cobra 5 HV ACE was designed for the extreme demands of 1/7th scale drag racing and high-speed applications.

For the standard "Basher" version, not for use with speed running and drag racing, use the Castle Cobra 5 HV.

PURCHASE INCLUDES:
Ghost RC Cobra 5 HV ACE ESC
400mm direct connect sensor wire
Cobra decals
Castle Link V4 USB Adapter
Warning insert

GHOST RC COBRA 5 HV ACE UNIQUE FEATURES:
Upgraded 6-gauge battery wires.
Perfect Pass™ feature - Allows time-based throttle ramping (up to 25 seconds) for smooth acceleration.
Sensored Only operation allow for advanced timing.
Boost timing up to 45° - RPM based or throttle-based activation and control.
Turbo timing up to 45° - Power out activation and time-based control.
Advanced Start Power
Start Power controls off the line acceleration.
Start Power Ramp Time controls how quickly start power engages.
Start Power Hold Time controls how long start power holds.
RPM Limiter - Helps prevent damage to rotors in the event of driveline failure.
210k eRPM maximum
Programmed Throttle Curve
Allows users to set a throttle curve that automatically engages at launch.
Time based activation that engages at an adjustable throttle input.
32-Bit Processing power for smoother motor control and improved response time.
Enhanced Data Logging includes:
Double the maximum sample frequency of older generations.
8x increased logging time of older generations.
Data point for ESC electrical motor timing.
Data point for acceleration via onboard accelerometer.
Looping feature prevents interruptions in data log recording.
Ability to download specific sessions.
Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
SmartSense® and brushed motor running modes
Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
Optional smartphone-based programming with the B-Link 2 Bluetooth Interface (sold separately) and free Castle Link 2 app available on Google Play or Apple App Store.
Mounting holes located in bottom of aluminum case for installation into vehicle.
ADDITIONAL FEATURES:
CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
Oversized factory equipped thermally controlled 50mm cooling fan
Waterproof design for all weather conditions
Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
