Castle Creations Sensored Brushless Motor 2535 - 520Kv 060-0117-00

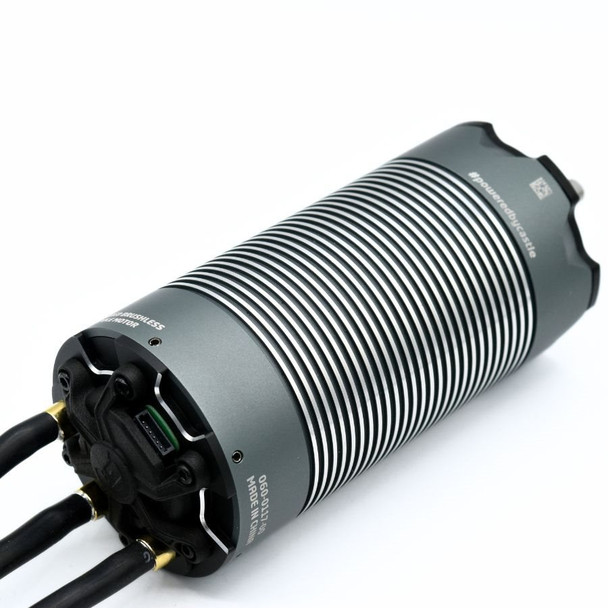

Castle Creations 2535-520Kv Sensored Brushless Motor

The Castle Creations 2535-520Kv is a massive high-power sensored brushless motor designed for extreme 1/5 and 1/4 scale RC vehicles, heavy large-scale builds, and gas-to-electric conversions. Castle lists the 2535 series as their largest and most powerful motor series, designed for vehicles weighing up to 50 lbs and up to 12S LiPo power.

When paired with a compatible ESC such as the Castle Cobra 5 HV, the 2535-520Kv motor is built to deliver serious torque and power for large-scale vehicles like the Losi 5IVE-T, Losi 5IVE-B, DBXL-E, and similar 1/5 or 1/4 scale platforms.

Features:

• 520Kv sensored brushless motor

• Designed for 1/5 and 1/4 scale RC vehicles

• Great for heavy large-scale builds and gas-to-electric conversions

• Recommended for vehicles up to 50 lbs ready-to-run

• Supports up to 12S LiPo power with compatible ESC

• 4-pole sensored brushless design

• Smooth startup and precise low-speed control with compatible sensored ESC

• High torque output for heavy vehicles

• Ideal for Losi 5IVE-T, Losi 5IVE-B, DBXL-E, and similar large-scale platforms

• Water-resistant motor design

• 8.0mm male bullet connectors

• Designed and supported by Castle Creations

• Compatible electronic speed control required, sold separately

Specifications:

• Product Number: 060-0117-00

• Motor: Castle 2535-520Kv Sensored Brushless Motor

• Kv: 520Kv

• Input Voltage Range: Up to 12S LiPo / 50.4V max

• Maximum RPM: 38,000

• Motor Length: 5.8" / 147.5mm

• Motor Diameter: 2.7" / 68.7mm

• Weight with wires: 84.8 oz / 5.5 lbs / 2.4kg

• Shaft Diameter: 8mm

• Shaft Length: 30mm

• Mounting Holes: M4 at 30mm and M4 at 40mm

• Connectors: 8.0mm male connectors

• Recommended ESC: Castle Cobra 5 HV or other compatible high-voltage sensored ESC

• Items Needed: Compatible electronic speed control, battery connector/adapter if needed, and proper vehicle mounting hardware

Package Includes:

• Castle 2535-520Kv sensored brushless motor

Notes:
A compatible ESC is required and sold separately. Please verify motor size, mounting pattern, shaft size, gearing, and ESC compatibility before installation.

This motor is intended for large-scale, high-power applications. It is not a direct drop-in for most smaller RC vehicles and may require custom mounting or drivetrain modifications.

Monitor motor and ESC temperatures closely during use. Use proper gearing and cooling for your vehicle setup.

Although the motor is water-resistant, it is not intended for full submersion. Routine maintenance is recommended after wet or dirty use.
