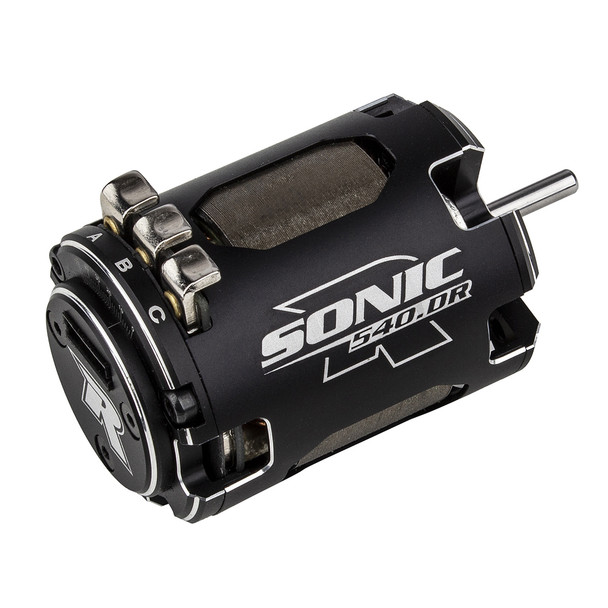

Associated 27470 Reedy Sonic 540.DR 2.5 Competition Brushless Drag Racing Motor

Features:
CNC machined lightweight can
Drag racing specific stator
Low-resistance, silver plated solder tabs
Optimized air cooling
Dual precision ball bearings
Drag racing specific balanced rotor
High-strength magnet
Adjustable timing
Completely rebuildable
Competition proven
Includes 200mm sensor wire

Crafted specifically for the requirements of drag racing

Externally, the 540.DR looks much like its cousin, the 540-M4. But the heart of the motor is where the major changes can be found. A new stator with an updated profile, thicker laminations, and unique material has been crafted specifically for the requirements of drag racing. Ample torque off the line with heavy pull through the pass improve ET and consistency.

A balanced, high-strength 13.5mm rotor suspended between precision ball bearings provides powerful performance pass after pass. To fine-tune for varying track conditions and surfaces, a variety of optional rotors are coming soon!

Like all Reedy motors, the latest brushless motor technology along with the engineering experience that is responsible for 30 World Championship titles has been incorporated into its design. Several versions are available to suit various tuning requirements and track conditions.

Voltage: 3.7-7.4
RPM/7.4V: 76486
kV: 10337
Power (W): 580
Efficiency (%): 94
Rotor Number: 27475
Cells: 2S LiPo
Diameter (mm): 35.9
Length (mm): 50.3
Shaft Diameter (mm): 3.15
Weight (g): 170
