SRT BH9032 HV Brushless Servo for 1/8 Electric/Nitro Buggy

KEY FEATURES

& Superior holding torque
& Incredible efficiency and low power consumption
& CNC machined aluminum case for exceptional cooling
& NMB dual main bearings
& 25T output shaft
& 1-Year limited warranty

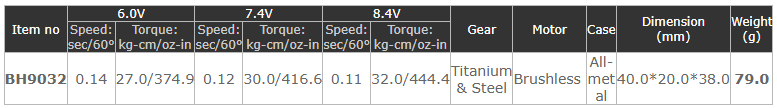

PRODUCT SPECIFICATIONS

type: digital

bearing: dual

motor type: brushless

gear type: metal

gear material: titanium & steel

control system: pulse width control

working frequency: 1520μs / 330hz

operating voltage: dc 6.0-8.4v

operating temperature range: -10 to +60 degree

operating speed (6.0v): 0.14 sec/60 degrees at no load

operating speed (7.4v): 0.12 sec/60 degrees at no load

operating speed (8.4v): 0.11 sec/60 degrees at no load

stall torque (6.0v): 27.0 kg/cm (374.9 oz/in)

stall torque (7.4v): 30.0 kg/cm (416.6 oz/in)

stall torque (8.4v): 32.0 kg/cm (444.4 oz/in)

potentiometer drive: direct drive

dimensions: 40x20x38.0 mm / 1.57x0.79x1.49 in

weight: 83.0 g (2.93 oz)

connector wire length: jr 300 mm
