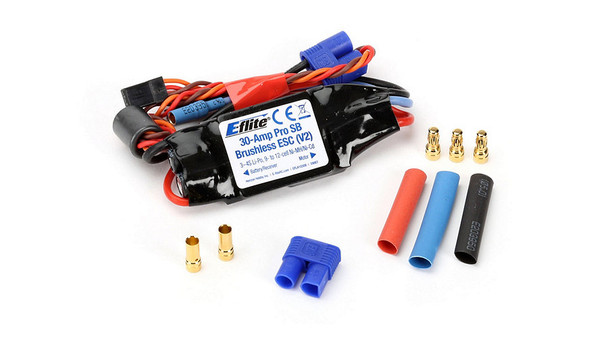

E-flite EFLA1030B 30-Amp Pro Switch-Mode BEC Brushless ESC (V2) Speed Control

KEY FEATURES:
- Up to 30 amps continuous current with proper air flow and 35 amps burst current (15 seconds)
- 3.5A continuous current, 5V Switch-Mode BEC Circuit
- Stronger BEC for support of most 3-axis stabilization systems
- Drive up to 7 analog or 6 digital standard-size servos with the BEC
- 3- to 4-cell Li-Po, 9- to 12-cell Ni-MH/Ni-Cd input voltage
- Programmable motor braking
- Safe power-arm mode prevents accidental starts
- Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V) or 74% of battery starting voltage
- Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
- Programmable soft start for helis and airplanes
- Auto motor shut down if signal is lost or there is interference
- Programmable timing—5 user-selectable ranges for use with a large variety of brushless motors
- Pre-wired connectors—E-flite EC3™ connector on battery input and 3.5mm gold bullet connectors on motor output leads

PRODUCT SPECIFICATIONS:
Continuous Maximum Current: 30A (proper cooling required)
Input Voltage: 3–6S Li-Po or 9–18 Ni-MH/Ni-Cd
Input Connector Types: 16 AWG leads with E-flite EC3 Connector
Output Connector Types: 16 AWG leads with 3.5mm Gold Bullet Connectors
Momentary Peak Current: 35A (15 sec)
Length: 51.0mm (2.00 in)
Width: 28.0mm (1.10 in)
Height: 8.70mm (0.35 in)
Weight: 31.0 g (1.10 oz)
Wire Gauge: 16 AWG
