Furious FPV

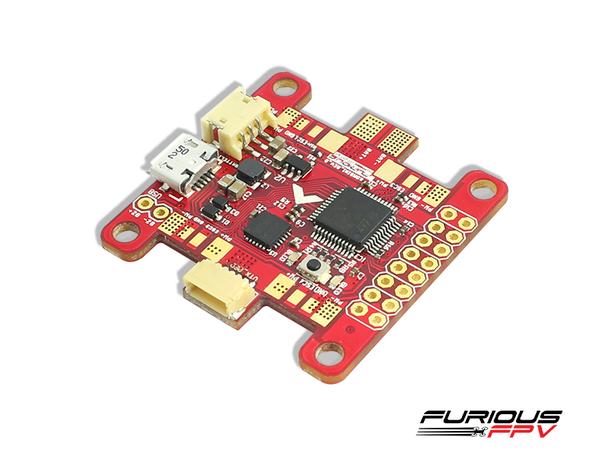

Furious FPV-KOMBDS KOMBINI Flight Controller - DSHOT600 Version

(No reviews yet) Write a Review
SKU:
FPV-KOMBDS
UPC:
8936037001524
Condition:
New
  • Furious FPV-KOMBDS KOMBINI Flight Controller - DSHOT600 Version
  • Furious FPV-KOMBDS KOMBINI Flight Controller - DSHOT600 Version
  • Furious FPV-KOMBDS KOMBINI Flight Controller - DSHOT600 Version
  • Furious FPV-KOMBDS KOMBINI Flight Controller - DSHOT600 Version
$48.95

Description

Furious KOMBINI FC - DSHOT600 VERSION.

Designed nothing short of revolutionary, the Furious KOMBINI Flight Controller steps up the competition with feature packed insanity that is ready to alter your FPV world.

Unlike any other system available today, the Furious KOMBINI provides an all in one solution that brings forth the ultimate in simplified sophistication. This all encompassing FC solution utilizes industry leading technology that has never been seen in a system this compact and powerful - the ultimate end game for high powered FPV flight.

Cluttered & complex wiring? Never again. With an industry 1st gold plated PDB that is integrated within, the KOMBINI FC provides the ultimate in soldering ease with the highest grade of connectivity, allowing direct soldering points for motors, VTx, Receiver and FPV Camera. Rated with 150A of current protection @ 5S 18.5V input power, the KOMBINI is ready to push the boundaries of aggressive FPV flight.

Utilizing the very latest F3 chip processor with built in CleanFlight & BetaFlight firmware, the Furious KOMBINI utilizes industry leading components with an included LC filter for the very best in signal reception. Add the 2A 5V BEC with a built in Sbus inverter & Spektrum satellite port, and the KOMBINI FC stands alone amongst all the rest with a potent blend of race ready madness.

Sized at 36mm x 36mm, the compact footprint of the KOMBINI FC is the perfect application of race ready aggression, providing a flight controller experience second to none. This adhesion of performance, capability & simplicity is the apex of FPV flight, providing the end user with a flight experience that brings everything to the table in a zero compromise design.

For the pinnacle in simplicity, performance and cutting edge capability, the Furious KOMBINI is the feature packed FC system that is ready and waiting to dominate. Get yours today, and change the way you FPV.

New KOMBINI DSHOT Version Update:

- Remove PPM pin and add TX2 pin For the pinnacle in simplicity, performance-
- Support DSHOT protocol
- New component for better BEC protection
- New RED color

Features & Capabilities:

- Latest Generation F3 Processor Chip

- Simplicity Defined with Built In PDB

- Massive 150A PDB Current Protection

- LC Filter & 12v

- 800mA BEC for VTX

- 5S 18.5V Ready

- Heavy Duty 2A BEC @ 5V and 0.8A BEC @12V Output

- Ultra Compact Design for Ease of Installation

- Gold Plated Pads for the Very Best Connectivity

- Firmware Perfection via CleanFlight & BetaFlight

- BLHeli Pass Through Setup

- Compact Sizing w/ 30.5mm x 30.5mm Mounting Holes

- Included Spektrum Satellite Port

- FrSky Telemetry, Ready & Waiting

- Full USB Support

- MPU6000 SP1 Chip

EPIC FLIGHT PERFORMANCE

 The Furious KOMBINI Flight Controller utilizes an advanced processor, sensor and software technology to allow your aircraft to fly like it's on rails. Combined with BetaFlight software, this system enables the precision and control for ultra fast FPV.

 F3 GENERATION CPU

 Incorporates an STM32 F3 processor with a hardware floating point unit, providing ultra efficient flight calculations and a faster ARM-Cortex M4 core.

 BUILT IN 5V and 12V REGULATOR (BEC)

 Don't limit your power! This Furious flight controller is equipped with 12V 0.8A output with a built in LC filter for the best results! The Kombini FC takes direct lipo voltage to power everything.  Furious FPV KOMBINI flight controller is the first flight controller that incorporates 12V BEC in to for VTXs that need higher voltage than 5V.  With 12V BEC, the cameras and VTXs are more stable.  It also has built-in 5V 2A BEC and LC liter built-in so pilots have options to choose either using 12V for high voltage VTXs/cameras or 5V BEC for led strips or 5V VTXs/cameras

 PDB BUILT IN

 Clean, simple and easy to setup with massive 150A current protection that is 5S 18.5V ready.

 ONESHOT & MULTI-SHOT ESC SUPPORT

 Full support for OneShot & MultiShot ESC's for ultra easy PID tuning with sharper overall response. Pass through ESC-BLHELI programming and configuration with VCP USB.

 RACE TIMING TRANSPONDER READY

 Incorporates a built in race transponder system to track your laps and record your lap times. Each board includes a unique transponder code to identify your aircraft during race events, and is fully compatible with i-LAP receiver systems.

 OSD READY

 Ready to be combined with an optional compact, stackable OSD system - available soon via Furious FPV.

MICRO SIZED & ULTRA LIGHT WEIGHT

 The Furious KOMBINI FC is 36mm x 36mm in size and utilizes 30.5mm spacing with M3 mounting holes. The KOMBINI incorporates a high quality, gold plated, 4-layer printed circuit board - all at a 6g all up weight.

 MPU-6000 SPI-BUS

 Gyro chip for faster acquisition of gyro based date and low noise functionality.

 LC FILTER

 Built in LC filter for ultra clean video clarity.

 TELEMETRY SUPPORT

 Ultra compatible with Frsky telemetry, SmartPort, and HoTT telemetry support.

 CONFIGURABLE

 The KOMBINI FC runs CleanFlight, which can be configured to suit your needs utilizing a cross platform GUI (Windows/OSX /Linux).

 MICRO USB PORT

 The only full featured mini sized board with USB socket, which is not shared with serial ports. Config and Flash via USB or Serial port.

 BROAD RC RECEIVER SUPPORT

 Supports SBus, SumH, SumD, Spektrum 1024/2048, XBus, and PPM with a built in Spektrum satellite port. No external inverters required (built in) with receiver powered via flight battery or USB for easy configuration.

 ALL FEATURES AVAILABLE AT ONCE

 Connect your USB/SmartPort/Sbus/GPS/LED Strip/Battery Monitoring/Sonar/Motors - all at the very same time.

 REVERSE CURRENT PROTECTION

 Protected with LiPo and USB inputs for problem free ESC calibration.

 PROGRAMMABLE LED'S

 Incorporates an output for multi-colored LED strips, which are excellent for FPV racing, line of sight orientation, and night flight.

 BATTERY MONITORING

 Built in battery voltage monitoring with an input for additional onboard current monitoring.

 BUZZER

 Buzzer port for audible warnings and setup notifications.

 SERIAL PORTS

 3 independent Serial Ports (UART1, UART2, and UART3) that are NOT shared with the USB port.
