Furitek FUR-2758 Nano Unity Torque 2-In-1 Foc ESC & Motor for Axial SCX30

Furitek NANO UNITY TORQUE 2-in-1 FOC ESC & Motor for Axial SCX30
Direct bolt-on design installs to the stock Axial SCX30 transmission with no additional adapter or mount required.
All-in-One Torque Power. Smart Wireless Control. Built for Crawling.
Introducing the Furitek NANO UNITY TORQUE, a next-generation 2-in-1 brushless power system designed exclusively for the Axial SCX30. Built for serious micro crawler enthusiasts, UNITY TORQUE combines torque-focused brushless performance, advanced FOC control, and smart wireless tuning into one ultra-compact, clean, and reliable solution.

By integrating the ESC and motor into a single unit, NANO UNITY TORQUE eliminates unnecessary wiring, simplifies installation, and maximizes space efficiency inside the tight SCX30 chassis.

Designed for Axial SCX30
The NANO UNITY TORQUE system is precision-engineered specifically for the Axial SCX30 platform. Its compact footprint and optimized layout ensure proper fitment, balanced weight distribution, and efficient power transfer through the SCX30 drivetrain.

This system is ideal for builders who demand both performance and a clean, organized chassis layout.

True 2-in-1 ESC and Motor Integration
Unlike traditional setups that require a separate ESC and motor, NANO UNITY TORQUE integrates both into a single streamlined unit.

This true 2-in-1 architecture reduces wiring complexity, minimizes potential connection issues, and delivers a cleaner and more reliable installation. The result is a lighter, simpler, and more robust micro crawler build.

Torque-Focused Brushless Performance
NANO UNITY TORQUE is engineered with a torque-first philosophy. The motor and control system are optimized to deliver strong low-end torque, stable power output, and precise throttle modulation.

This makes it ideal for technical crawling, steep climbs, and controlled low-speed maneuvering where smoothness and torque matter more than raw top speed.

The system is optimized to operate efficiently on 2S and 3S LiPo, giving drivers flexibility to increase torque output while maintaining excellent drivability and control.

Advanced FOC Control Technology
Powered by Furitek’s refined FOC (Field Oriented Control) algorithm, NANO UNITY TORQUE delivers ultra-smooth startup, super slow crawl capability, and stable torque even at extremely low RPM.

Throttle response remains smooth, predictable, and consistent under load, allowing precise control in demanding crawling situations.

Built-in Wireless Tuning and Smart Control
The ESC inside NANO UNITY TORQUE is based on Furitek’s NanoPython ESC architecture, featuring a built-in wireless module for seamless mobile tuning and monitoring.

Users can connect directly to the Furicar App on iOS and Android for setup, tuning, and system monitoring. No programming cards, no cables, and no external modules are required.

Key parameters such as throttle response, startup behavior, and torque characteristics can be adjusted wirelessly, allowing easy customization directly from a mobile device.

Real-Time Telemetry and Wireless Firmware Updates
With built-in wireless connectivity, NANO UNITY TORQUE provides real-time telemetry through the Furicar App, including voltage, current, temperature, and throttle data, with update rates up to 10Hz.

Firmware updates are performed wirelessly via the app, with free lifetime firmware updates, ensuring continued optimization and long-term system support.

Integrated 5.5V / 5A BEC
NANO UNITY TORQUE features an integrated 5.5V / 5A BEC, designed to provide stable and reliable power for most standard micro servos used in SCX30 applications.

This BEC output is optimized for efficiency and thermal stability within the ultra-compact 2-in-1 design, ensuring consistent steering performance during technical crawling and trail driving.

Key Features
True 2-in-1 brushless ESC and motor design

Torque-focused performance optimized for crawling

Advanced FOC control for ultra-smooth throttle response

Built-in wireless tuning module

Direct connection to Furicar App on iOS and Android

No cables or external modules required for tuning

Real-time telemetry up to 10Hz

Wireless firmware updates with free lifetime updates

Integrated 5.5V / 5A BEC

Optimized for 2S and 3S LiPo batteries

Ultra-compact design for clean SCX30 installations

Designed specifically for Axial SCX30

Technical Specifications
Application Axial SCX30 and compatible custom micro RC platforms
Power System Integrated 2-in-1 brushless FOC ESC and motor
Installation Direct bolt-on to the stock Axial SCX30 transmission; no additional adapter or mount required
Battery Support 2S to 3S LiPo
BEC Output 5.5V / 5A
Control Technology Furitek FOC (Field Oriented Control)
ESC Architecture Based on NanoPython ESC architecture
Wireless Tuning Built-in
App Support Furicar App for iOS and Android
Telemetry Voltage, current, temperature, and throttle data; up to 10Hz
Firmware Updates Wireless updates with free lifetime firmware updates

Why Choose NANO UNITY TORQUE?
The Furitek NANO UNITY TORQUE is the ultimate all-in-one power solution for Axial SCX30 owners who want strong crawling torque, smooth low-speed control, smart wireless tuning, and the cleanest possible installation.

It combines advanced brushless technology, intelligent control, and extreme compactness into one unified system built for the future of micro crawling.

Required Equipment
2-channel or higher TX and RX radio system required

ESC signal cable must be connected to CH2 on the receiver

Compatible 2S or 3S LiPo battery
Axial SCX30 or compatible custom micro RC platform

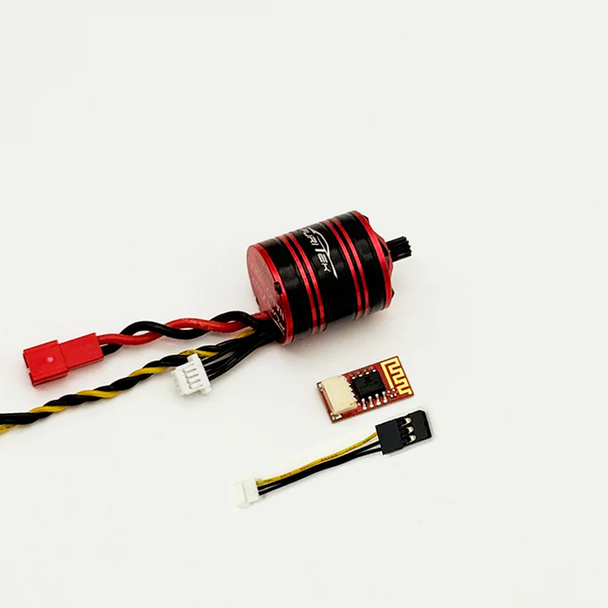

What’s Included
Furitek NANO UNITY TORQUE 2-in-1 FOC ESC & Motor

Integrated brushless ESC and motor system designed specifically for Axial SCX30

11T Pinion Gear

Pre-selected pinion optimized for torque-focused crawling performance

Built-in Wireless Module

Integrated wireless module for direct connection to the Furicar App on iOS and Android

Signal Adapter Cable

Adapter cable for connecting the system to a standard radio receiver
