Futaba 12K A 14Ch T-FHSS/S-FHSS Radio Airplane Transmitter / R3008SB Receiver

This is the Futaba 12KA 2.4GHz T-FHSS S.Bus2 14 Channel Computer Radio System with the R3008SB Receiver.
This is the airplane version which will default to airplane settings when powered up.

FEATURES
14 channels (12 proportional, 2 switched)
Compatible with T-FHSS and S-FHSS protocols, transmits and receives telemetry data via the T-FHSS protocol, Futaba telemetry sensors
are required (sold separately)
Six 3-position switches, two 2-position switches, two slider levers, two rotary dials, four digital trims and two push buttons
S.Bus2 system allows multiple servos, gyros and more to be set up with fewer cables
Large, backlit LCD screen with adjustable contrast
Micro memory card slot for storing model info and free system updates
Expandable 30-model memory, 10 character model naming
5 flight conditions, 5 customizable programmable mixes
Vibration feature alerts pilots to various alarms and timers in addition to sound

Airplane Features;
6 Wing Types, 3 Tail Wing Types, 5 Flight Modes
Pitch Curve and Throttle Curve
Throttle Delay
Aileron Differential
Flap Setting
Aileron to Camber Flaps
Aileron to Brake Flaps
Aileron to Rudder
Rudder to Aileron
Camber Mix
Elevator to Camber
Camber Flap to Elevator
Butterfly Function
Trim Mix
Air Brake
Gyro Mix
V-Tail
Ailevator (dual elevator)
Winglet
Motor Speed
Rudder to Elevator
Snap Roll
Multi-engine Functionality
Airbrake

Helicopter Features;
6 Swash Types
Pitch Curve and Pitch Trim
Throttle Curve and Throttle Hover Trim
Throttle Hold
Swash Ring
Pitch to Needle
Pitch to Rudder (revolution mixing)
Gyro Mixing
Governor Mixing
Timer settings
Throttle percent timer

Glider Features;
Glider-specific functions
6 Wing Types, 3 Tail Wing Types

Multirotor Features;
Throttle stick position warning
Gyro Sense
Flight Mode
Throttle Curve, Throttle Delay

R3008SB Receiver, FUTL7685
T-FHSS protocol
Dual Antenna Diversity
S.Bus/S.Bus2 ports (S.Bus2 port for bidirectional telemetry sensors)
8-channel PWM conventional ports
High voltage
Battery fail-safe

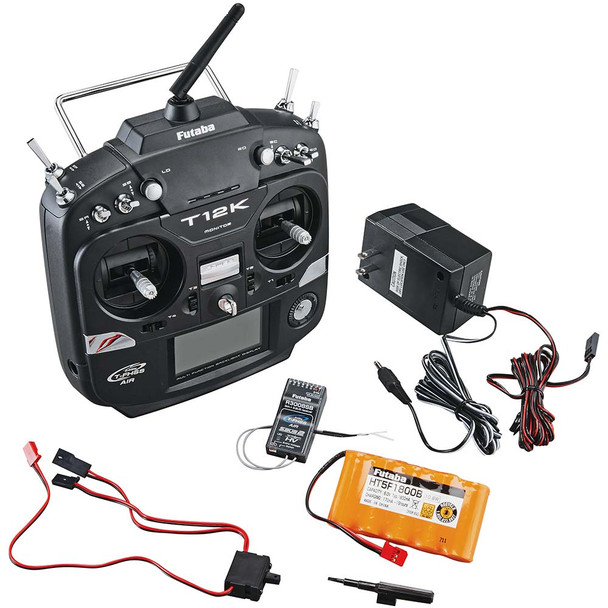

INCLUDES:
12K Transmitter,
HT5F1800B 6V 1800mAh NiMH Transmitter Battery and Charger
R3008SB Receiver
On/Off Switch
Instruction Manual

REQUIREMENTS:
Servos of modeler's choice

SPECIFICATIONS:
12K Transmitter;
Frequency Band: 2.4GHz
RF Power Output: 100mW EIRP
System: T-FHSS Air, S-FHSS switchable
Power Supply: 6.0V HT5F1800B
R3008SB Receiver
External Voltage Port: 0-70V DC
Power Requirement: 4.8-7.4V
Dimensions: 0.98 x 1.86 x 0.56" (24.9 x 47.3 x 14.3mm)
Weight: 0.36 oz (10.1 g)
