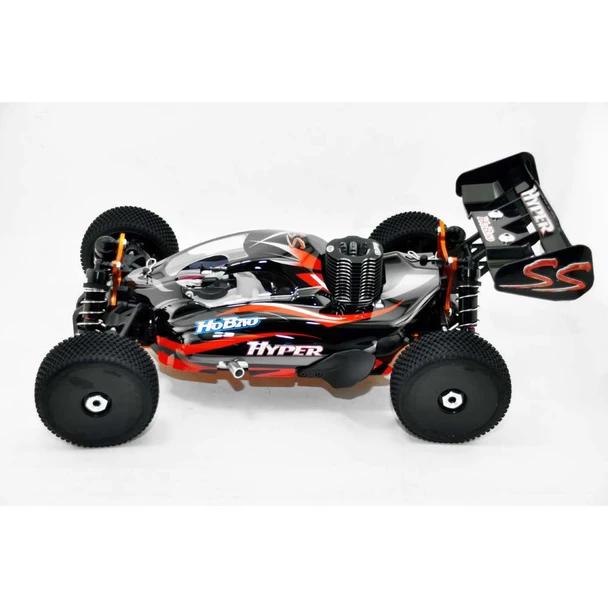

HoBao Racing HB-SS-C28B 1/8 RTR Hyper SS Off Road Nitro Car Black

Chassis: Aluminum 0.14" (3.5mm), gun metal gray in color, separate
plastic side guards
Drive: Four wheel shaft
Engine: Hobao Mac Star 28 with slide valve carb, Hobao T4 turbo
platinum glow plug, and large plastic pull-start handle
Exhaust: Aluminum tuned pipe with polished natural finish
Radio: Hobao HT-2.4EF 3-channel 2.4GHz FHSS with dual rate steering
and throttle, charge jack on transmitter for optional NiCd
batteries, high output digital steering and throttle servos
Suspension: C-hub front, newly designed front and rear lower
composite suspension arms, front and rear stabilizer bars
Shocks: Aluminum body 17mm Big Bore oil-filled
Shock Towers: 0.16" (4mm) thick aluminum
Fuel Tank: 5oz (150cc)
Clutch Bell: 15T steel
Tires: Low tread L-pattern with foam inserts, 4.32" (111mm)
Wheels: Revo style, black in color, 17mm hex
Body: Trimmed and painted with black, red, gray and white color
scheme
Caster: Adjustable, caster/toe-in refers to the angle of the
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle

RTR Hyper SS Off-Road car with .28 cu in (4.6cc) Engine, 3-ch Radio,
Steering and Throttle Servos, black plastic Rear Wing, Decal Sheet
painted Body and Instruction Manual

AA Batteries: Twelve, 8 for radio, 4 for receiver
Nitro Fuel: Car blend with 15-30% nitro content, 30% required for
engine break-in
Track and maintenance equipment

Vehicle;
Length: 19.8" (510mm)
Width: 12" (308mm)
Height: 7.2" (180mm)
Wheelbase: 12.8" (330mm)
Front Track: 10.33" (265mm)
Rear Track: 10.14" (260mm) distance between outer edges of wheels
measured side-to-side
Weight: 7.62lbs (3450g)

Body;
Length: 12.8" (325mm)
Width: 7.5" (190mm)
Height: 3.8" (96mm)

Carburetor Needle Settings;
Factory Default After Break-In
Top End (high speed): 2-1/2 turns out 2-2-1/4 turns out
Bottom End (low speed) 1/2 turn out flush w/ball collar
Mid Range: Flush-do not touch Flush-do not touch
Idle Screw 1mm (1/16" ) 1mm (1/16" )
