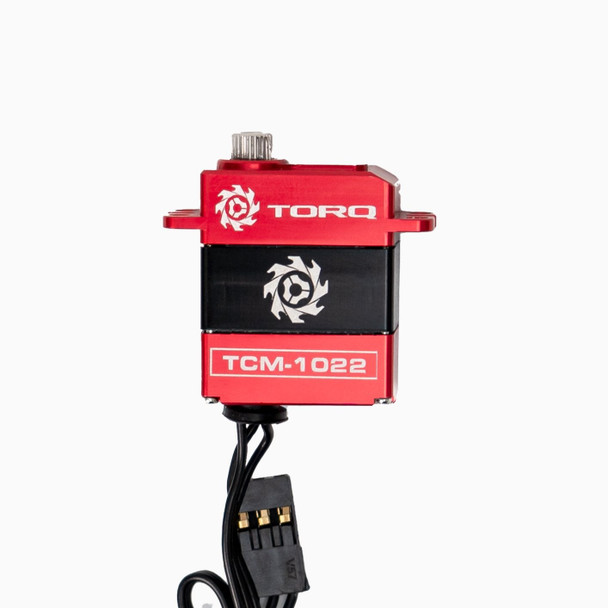

TORQ TCM-1022 Premium High Torque Metal Gear Micro Coreless Servo - RED

TORQ TCM-1022 Premium High Torque Servo - RED

The TORQ TCM-1022 Premium High Torque Servo is expertly engineered to cater to the needs of small-scale crawlers.

Key features include rear exit wires, further ensuring that suspension travel remains unhindered. This servo is designed for ultimate clearance all around, making it a standout choice for crawler enthusiasts. The servo bolts in for the Axial SCX24 Bronco, Axial SCX24 1967 Chevrolet C10, Axial SCX24 DODGE POWER WAGON, Axial SCX24 DEADBOLT, Axial SCX24 JEEP JT GLADIATOR (requires using the edge hole and trimming the shock mount slightly), Red cat Ascent 18, Red cat MT18.

FULL Precision CNC Aluminum Case with red anodizing colors.

Note: When using with SCX24, you should use the edge hole and cut the shock mount a little bit.

Features

High Torque Output: Delivers powerful performance for small-scale crawlers.

Rear Exit Wires: Ensures suspension travel is unhindered for optimal performance.

Simplified Installation: Easy to mount due to its unique design.

Enhanced Clearance: Designed for ultimate clearance around the servo.

Full precision CNC Metal Gears

Full precision CNC Aluminum Case with red anodizing color.

Waterproof

Specifications

-          Dead Bandwidth: 3μs

-          Working Frequency: 1520μs / 330Hz

-          Operating Voltage: 5.0V - 8.4V

-          Motor Type: Coreless Motor

-          Operating Speed:

·       At 5.0V: 0.10 sec/60°

·       At 6.0V: 0.09 sec/60°

·       At 7.4V: 0.07 sec/60°

·       At 8.4V: 0.055 sec/60°

-          Stall Torque:

·       At 5.0V: 9 kg-cm (125 oz-in)

·       At 6.0V: 11.5 kg-cm (160 oz-in)

·       At 7.4V: 12.8 kg-cm (177 oz-in)

·       At 8.4V: 14.5 kg-cm (200 oz-in)

-          Dimensions: 23 x 12 x 27.5 mm (0.91 x 0.47 x 1.08 inches)

-          Weight: 22.0 g (0.78 oz)

-          Connector Wire Length: JR 170 mm (6.7 inches)

-          Output Gear Spline: 25T

Benefits

-          Space Efficiency: Compact design fits seamlessly within small-scale crawler setups.

-          Cost Savings: No need to purchase additional CNC servo mounts and CNC servo arms.

-      Performance Enhancement: Unhindered suspension movement leads to better crawler performance.

-          Ease of Installation: Simplifies the mounting process, saving time and effort.
