Traxxas

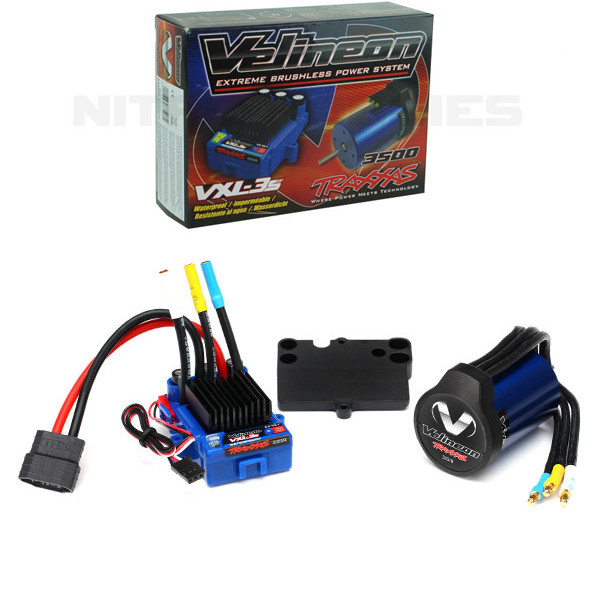

Traxxas 3350R Velineon Waterproof 3500 Brushless Motor / ESC VXL-3s System 4-pole

(No reviews yet) Write a Review
SKU:
TRA3350R
UPC:
020334335081
Condition:
New
MSRP: $330.00
$169.95
— You save $160.05

Description

NEWEST VERION..NOW WITH 4 POLE!

This is the Traxxas Velineon Extreme Brushless Waterproof Power System
for electric powered R/C vehicles.

FEATURES

Each component engineered to work wih each other to eliminate
restrictions and allow maximum power flow

Velineon VXL-3s ESC;
Auto-detects and compatible with brushed, brushless and sensored
brushless motors
Compatible with NiCd, NiMH (4-10 cells) and 2-3 cell LiPo battery
packs-two stage low voltage detection for LiPos
Three driver profiles-Sport, Race and Training Modes
Gold-plated motor connectors
Built-in output for optional auxiliary cooling fan
Velineon 3500 Brushless Motor;
10-turn 3500kV
Optimized for extreme power and efficiency in 1/10 scale vehicles
Ultra high temp neodymium magnets, high-speed ball bearings
Precision balanced rotor
Traxxas High-Current Connector
Reverse polarity protection makes backward connections impossible
Compatible with high-current 12-gauge wire
Gold-plated wide surface terminals
Textured surface for easy gripping

INCLUDES

Velineon VXL-3s ESC, Velineon 3500 Brushless Motor and high-current
connector

REQUIREMENTS

Installing in vehicle
NiCd, NiMH (4-8 cells) or 2-3 cell LiPo battery

SPECIFICATIONS

VXL-3s
Input voltage: 4.8-11.1V (4-10 cells NiMH or 2S-3S LiPo)
Supported motors: Brushed/Brushless/Sensorless brushless
Motor Limit: None
Continuous current: 200A
Peak current forward & reverse: 320A
Braking Current: 320A
BEC voltage 6.0V DC
BEC current: 2.5A w/6-cell NiMH
Transistor type: MOSFET
On-resistance: 0.00075 ohms Max (0.006/8 FETs)
PWM frequency: 12,000Hz
Battery connectors: Traxxas High-Current Connector
Motor connectors: TRX 3.5mm bullet connectors
Motor/battery wiring: 12-gauge Maxx Cable
Input Harness Wire: 26 gauge, 3.9" (100mm)in length
Low voltage detection: 2-Stage indicators, switchable (on or off)
Thermal protection: 2-stage thermal shutdown
Case size (l/w/h): 2.19" x 1.54" x 1.3" (55 x 39 x 33mm)
Weight: 3.17oz (90g)

Velineon 3500 Motor
Type: Sensorless brushless
RPM/volt: 3500 (10-turn)
Magnet type: Ultra High-Temperature, sintered neodymium
Connection type: TRX 3.5mm bullet connectors
Wire Size: 12-gauge Maxx Cable w/solder tabs
Current Ratings: 65A constant; 100A peak/burst
Max RPM: 50,000
Diameter: 1.42" (36mm) (540 size)
Length: 2.165"(55mm)
Weight: 8.75oz (248g)
