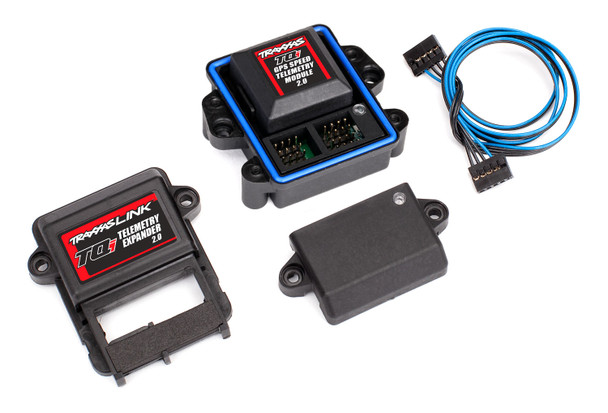

Traxxas 6553X TQi Telemetry Expander 2.0 w/ GPS Speed Module 2.0

Upgrade Your Traxxas Model with the
TQi Telemetry Expander 2.0
and GPS Module 2.0!

TQi Telemetry Expander 2.0 (#6550X) Contents (Three-Quarter View)
Requires the TQi radio system with Wireless Module (#6511), TSM receiver (#6533), Apple device running iOS 7.0 or higher, or Android-equipped device with Android 4.4 and higher, and the Traxxas Link App (latest version available free on Google Play and the App Store)
TQi Expander 2.0 (#6550X) Installed on Spartan (#57076-4)

Expanded Innovation

TQi Telemetry Expander 2.0 (#6550X) Inputs (Three-Quarter View)Traxxas telemetry changes the game by allowing you to monitor and record real-time data from your vehicle while you drive. The waterproof Telemetry Expander 2.0 includes the GPS Module 2.0 for the most accurate speed possible and accepts up to six additional auto-detectable sensors. The Traxxas Link app automatically recognizes sensors, so setup takes only a few moments! Advanced communication bus technology allows you to connect the telemetry expander to your TSM receiver or to your High-Voltage Power Amplifier, or directly to the VXL-6s and VXL-8s electronic speed controls with optional data cables. Install the Telemetry Expander, choose your sensors, and prepare for an all-new RC driving experience!



Important Note

The new GPS Module 2.0 (#6551X) and Telemetry Expander 2.0 (#6550X) replace the original Telemetry Expander (#6550) and GPS Module (#6551). The originals are not compatible with the new 2.0 versions.

TRAXXAS TELEMETRY EXPANDER KIT (#6553X) FEATURES
Includes receiver data cable (optional data cables available)
Installs quickly and easily; no parts to replace or swap
Waterproof case keeps the expander safe from the elements
Six available ports for connecting auto-detectable plug and play sensors
Uses GPS and GLONASS global positioning for accurate, real-time speed
Speed readout not affected by gear ratio or tire-size
The Benefits of Traxxas Telemetry

The Traxxas TQi radio system, Wireless Link Module, and Traxxas Link App transform your Apple or Android device into a powerful tuning tool with an intuitive, high-definition, full-color graphical user interface. Adjust your radio trims and settings, vehicle profiles, update model memory, and tailor your vehicle for different driving conditions by means of a virtual dashboard and interactive screens. Using the complete TQi system and Traxxas Link app makes pro-level transmitter tuning fast, convenient, and easy.

Precise GPS-Based Speed

TQi Expander 2.0 (#6550X) with GPS Speed Telemetry Module 2.0 (#6551X) Installed (Three-Quarter View)
Standard telemetry sensors use your vehicle’s gear ratio and tire size to calculate speed based on RPM. This system works well for hard surfaces, but wheelspin on loose surfaces causes inaccurate speed readings. The Telemetry Expander 2.0 with GPS Module provides the most accurate speed data possible. The GPS Module 2.0 uses both GPS and GLONASS global positioning to deliver precise, real-time speed information via the Traxxas Link App on your TQi Radio System with Traxxas Link Wireless Module.



Easy to Install

The Telemetry Expander 2.0 is easy to install with custom, vehicle specific mounting kits from Traxxas. These mounting kits ensure that the Telemetry Expander 2.0 is secured in the model with a clean and rugged solution that delivers the durability you expect from Traxxas.
