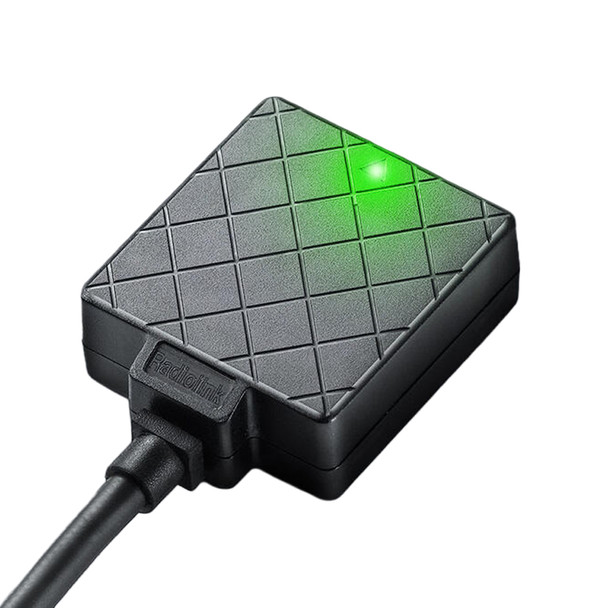

Radiolink TS100 (M8N) GPS Dual Anti-Interference Technology

M8N GPS

RadioLink TS100

Dual anti-interference technology

Unaffected by the high-power image transmission of drones and strong signal interference from high-voltage lines.

Dual anti-interference technology



Interference filtering: Two-stage filtering with 78dB attenuation effectively filters out out-of-band interference.

Interference immunity: The 20dBM in-band 1dBM compression point high linearity LNA minimizes the impact of even a small amount of interference signal passing through the filter.

It effectively resists strong signal interference, such as high-power image transmission on drones and high-voltage lines.

Unreplicable stability

Employing a low-loss circuit design for the front-end LNA precisely matched to the ceramic antenna, the ability to capture extremely weak signals is enhanced while achieving ideal interference filtering.

By using optimal circuit layout, input interference can be effectively suppressed while capturing extremely weak signals.

With a positioning accuracy of 50 centimeters, it can acquire 20 satellites in 6 seconds in open areas and has extremely strong positioning capabilities in valleys.

Dual-band 1575±1MHz and 1602～1610MHz.

Supports multiple positioning systems: GPS, GLONASS, Galileo/E1, and can work simultaneously with Samsung.

High-end configuration


It uses u-blox's most advanced receiver chip UBX-M8030 (M8) from a well-known GPS brand, with 72 channels, and its performance far exceeds that of the previous single-mode version 7N;

Built-in VCM5883L high-precision electronic compass (I2C interface);

The first-stage Murata surface acoustic wave filter features a proprietary dual-filter design for enhanced anti-interference capabilities.

2.5dBI high-gain, high-selectivity ceramic antenna.





2.5dB I ceramic antenna

u-blox UBX-M8030(M8)

Supercapacitor

IST8310 Electronic Compass
