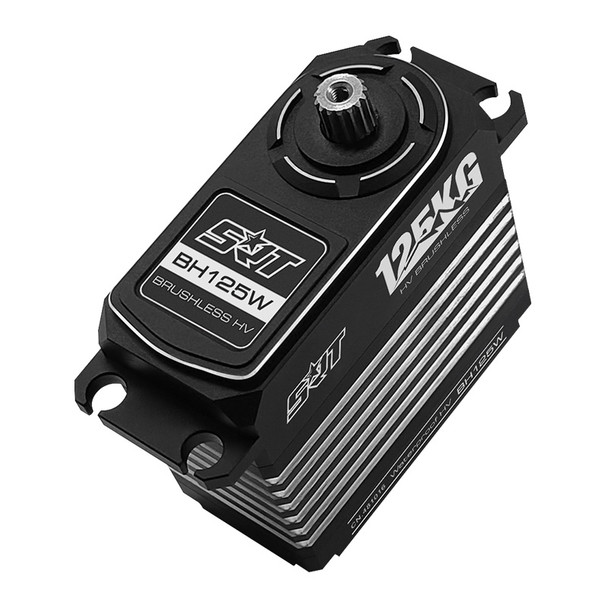

SRT BH125W HV Brushless Servo for 1/5 Nitro Touring & Buggy

KEY FEATURES

& Incredible efficiency and low power consumption

& NMB dual main bearings

& Superior holding torque

& Waterproof function

& 15T output shaft

& 1-Year limited warranty

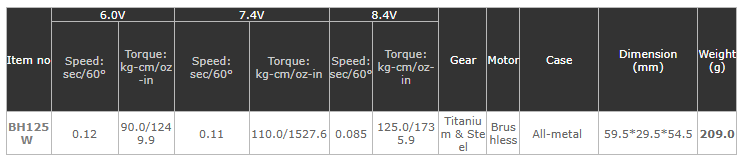

PRODUCT SPECIFICATIONS


type: digital

bearing: dual

motor type: brushless

gear type: metal

gear material: titanium & steel

control system: pulse width control

working frequency: 1520μs / 330hz

operating voltage: dc 6.0-8.4v

operating temperature range: -10 to +60 degree

operating speed (6.0v): 0.12 sec/60 degrees at no load

operating speed (7.4v): 0.11 sec/60 degrees at no load

operating speed (8.4v): 0.085 sec/60 degrees at no load

stall torque (6.0v): 90.0 kg/cm (1249.9 oz/in)

stall torque (7.4v): 110.0 kg/cm (1527.6 oz/in)

stall torque (8.4v): 125.0 kg/cm (1735.9 oz/in)

potentiometer drive: direct drive

dimensions: 59.5x29.5x54.5 mm / 2.34x1.16x2.15 in

weight: 209.0 g (7.37 oz)

connector wire length: jr 350 mm
