SRT BHMX2-180mm HV Brushless Servo for 1/10 Electric/Nitro 1/8 Nitro Touring

KEY FEATURES

& 4-Pole brushless motor with superior fast response

& Ultra low-profile, smaller & lighter & faster

& Extremely sensitive response speed

& NMB dual main bearings

& Supporting SXR, SUR, UR, SR, SFR multiple ultra high speed modes

& 1-Year limited warranty

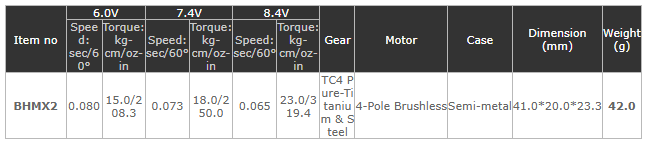

PRODUCT SPECIFICATIONS


type: digital

bearing: dual

motor type: 4-Pole brushless

gear type: metal

gear material: TC4 pure-titanium & steel

control system: pulse width control

working frequency: 1520μs / 330hz

operating voltage: dc 6.0-8.4v

operating temperature range: -10 to +60 degree

operating speed (6.0v): 0.080 sec/60 degrees at no load

operating speed (7.4v): 0.073 sec/60 degrees at no load

operating speed (8.4v): 0.065 sec/60 degrees at no load

stall torque (6.0v): 15.0 kg/cm (208.3 oz/in)

stall torque (7.4v): 18.0 kg/cm (250.0 oz/in)

stall torque (8.4v): 23.0 kg/cm (319.4 oz/in)

potentiometer drive: direct drive

dimensions: 41.0x20.0x23.3 mm / 1.61x0.79x0.92 in

weight: 42.0 g (1.48 oz)

connector wire length: jr 180 mm (Specifically designed for nitro car steering)

connector wire length: jr 80 mm (Specifically designed for electric car)
