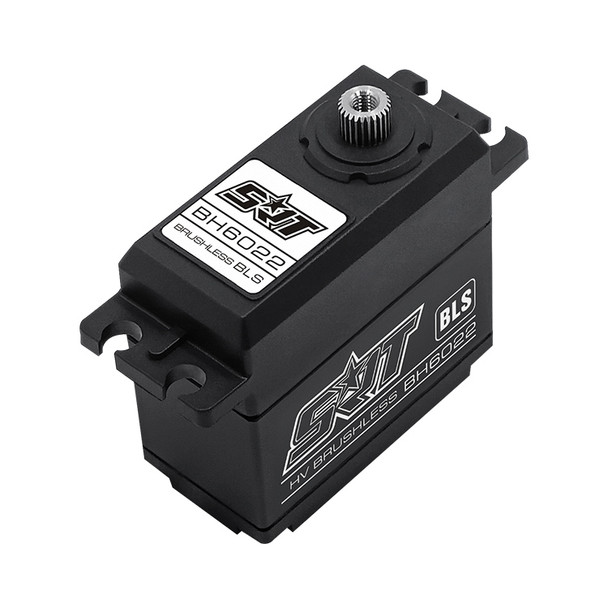

SRT BH6022 HV Brushless Servo for 1/8 Electric/Nitro 1/10 Electric/Nitro

KEY FEATURES

& Incredible efficiency and low power consumption
& HD 4096 resolution
& NMB dual main bearings
& 25T output shaft
& 1-Year limited warranty

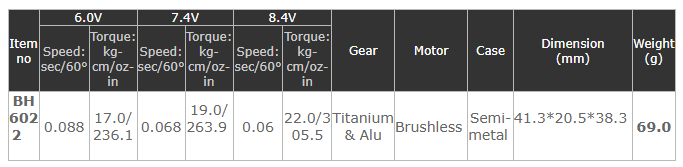

PRODUCT SPECIFICATIONS


type: digital

bearing: dual

motor type: brushless

gear type: metal

gear material: titanium & alu

control system: pulse width control

working frequency: 1520μs / 330hz

operating voltage: dc 6.0-8.4v

operating temperature range: -10 to +60 degree

operating speed (6.0v): 0.088 sec/60 degrees at no load

operating speed (7.4v): 0.068 sec/60 degrees at no load

operating speed (8.4v): 0.06 sec/60 degrees at no load

stall torque (6.0v): 17.0 kg/cm (236.1 oz/in)

stall torque (7.4v): 19.0 kg/cm (263.9 oz/in)

stall torque (8.4v): 22.0 kg/.cm (305.5 oz/in)

potentiometer drive: direct drive

dimensions: 41.3x20.5x38.3 mm / 1.63x0.80x1.51 in

weight: 69.0 g (2.43 oz)

connector wire length: jr 300 mm
