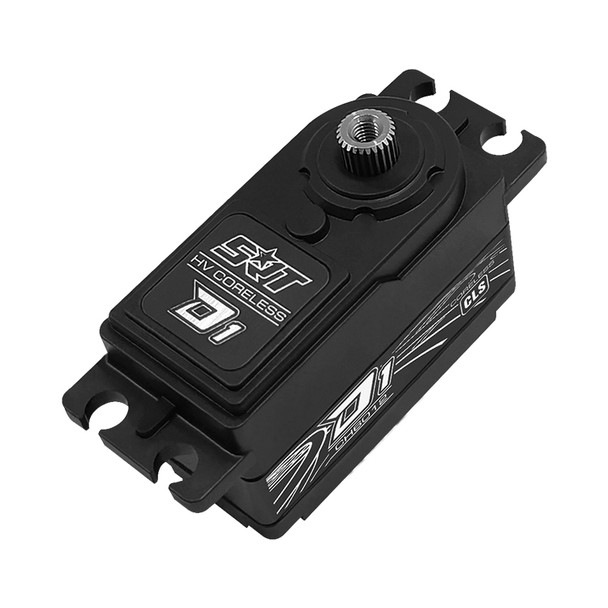

SRT CH6012 HV Coreless Servo for 1/10 Electric Touring / 1/10 Drift / Formula One

KEY FEATURES


& Incredible efficiency and low power consumption
& CNC machined aluminum case for exceptional cooling
& 25T output shaft

& Superior fast response
& 1-Year limited warranty

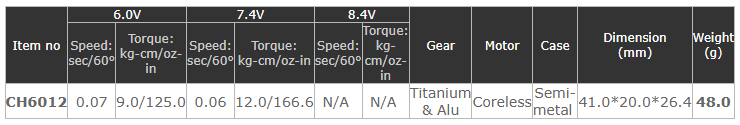

PRODUCT SPECIFICATIONS


type: digital

bearing: dual

motor type: coreless

gear type: metal

gear material: titanium & alu

control system: pulse width control

working frequency: 1520μs / 330hz

operating voltage: dc 6.0-7.4v

operating temperature range: -10 to +60 degree

operating speed (6.0v): 0.07 sec/60 degrees at no load

operating speed (7.4v): 0.06 sec/60 degrees at no load

stall torque (6.0v): 9.0 kg/cm (125.0 oz/in)

stall torque (7.4v): 12.0 kg/cm (166.6 oz/in)

potentiometer drive: direct drive

dimensions: 41.0x20.0x26.4 mm / 1.61x0.79x1.04 in

weight: 48.0 g (1.69 oz)

connector wire length: jr 110 mm
