SRT D1S HV Coreless Servo for 1/10 Drift

KEY FEATURES

& Incredible efficiency and low power consumption
& CNC machined aluminum case for exceptional cooling
& 25T output shaft
& Superior fast response
& 1-Year limited warranty

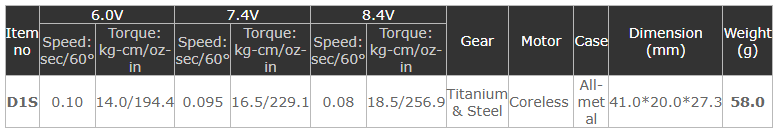

PRODUCT SPECIFICATIONS


type: digital

bearing: dual

motor type: coreless

gear type: metal

gear material: titanium & steel

control system: pulse width control

working frequency: 1520μs / 330hz

operating voltage: dc 6.0-8.4v

operating temperature range: -10 to +60 degree

operating speed (6.0v): 0.10 sec/60 degrees at no load

operating speed (7.4v): 0.095 sec/60 degrees at no load

operating speed (8.4v): 0.08 sec/60 degrees at no load

stall torque (6.0v): 14.0 kg/cm (194.4 oz/in)

stall torque (7.4v): 16.5 kg/cm (229.1 oz/in)

stall torque (8.4v): 18.5 kg/cm (256.9 oz/in)

potentiometer drive: direct drive

dimensions: 41.0x20.0x27.3 mm / 1.61x0.79x1.07 in

weight: 58.0 g (2.05 oz)

connector wire length: jr 80 mm
