SRT Min6 HV Coreless Servo for 1/12 Pancar

KEY FEATURES


& Supporting SXR multiple ultra high speed modes

& Incredible efficiency and low power consumption

& Programmable function

& 25T output shaft

& 1-Year limited warranty

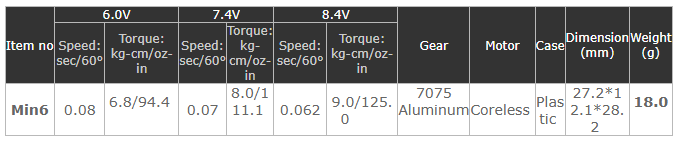

PRODUCT SPECIFICATIONS


type: digital

bearing: dual

motor type: coreless

gear type: metal

gear material: 7075 Aluminum

control system: pulse width control

working frequency: 1520μs / 333hz

operating voltage: dc 4.8-8.4v

operating temperature range: -10 to +60 degree

operating speed (4.8v): 0.100 sec/60 degrees at no load

operating speed (6.0v): 0.080 sec/60 degrees at no load

operating speed (7.4v): 0.070 sec/60 degrees at no load

operating speed (8.4v): 0.062 sec/60 degrees at no load

stall torque (4.8v): 5.0 kg/cm (69.4 oz/in)

stall torque (6.0v): 6.8 kg/cm (94.4 oz/in)

stall torque (7.4v): 8.0 kg/cm (111.1 oz/in)

stall torque (8.4v): 9.0 kg/cm (125.0 oz/in)

potentiometer drive: direct drive

dimensions: 27.2x12.1x28.2 mm / 1.07x0.48x1.11 in

weight: 18.0 g (0.63 oz)

connector wire length: jr 170 mm
