SRT M11 HV Coreless Servo for 1/12 Pancar

KEY FEATURES

& Supporting SXR, SFR, SSR multiple ultra high speed modes

& Incredible efficiency and low power consumption

& CNC machined aluminum case for exceptional cooling

& 25T output shaft

& 1-Year limited warranty

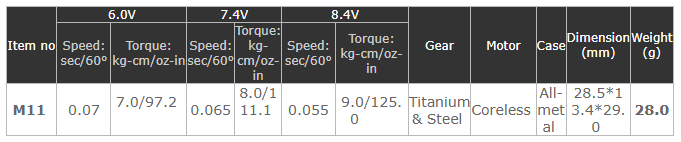

PRODUCT SPECIFICATIONS


type: digital

bearing: dual

motor Type: coreless

gear type: metal

gear material: titanium & steel

control system: pulse width control

working frequency: 1520μs / 333hz

operating voltage: dc 6.0-8.4v

operating temperature range: -10 to +60 degree

operating speed (6.0v): 0.07 sec/60 degrees at no load

operating speed (7.4v): 0.065 sec/60 degrees at no load

operating speed (8.4v): 0.055 sec/60 degrees at no load

stall torque (6.0v): 7.0 kg/cm (97.2 oz/in)

stall torque (7.4v): 8.0 kg/cm (111.1 oz/in)

stall torque (8.4v): 9.0 kg/cm (125.0 oz/in)

potentiometer drive: direct drive

dimensions: 28.5x13.4x29.0 mm / 1.12x0.53x1.14 in

weight: 28.0 g (1.0 oz)

connector wire length: jr 170 mm
