SRT BH922S HV Brushless Servo for 1/10 Electric Buggy 1/8 Electric GP/Nitro GP&GT

KEY FEATURES

& Superior holding torque
& Incredible efficiency and low power consumption
& NMB dual main bearings
& Supporting SXR multiple ultra high speed modes
& HD 4096 resolution
& 1-Year limited warranty

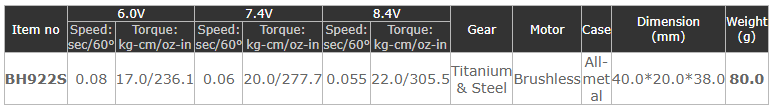

PRODUCT SPECIFICATIONS


type: digital

bearing: dual

motor type: brushless

gear type: metal

gear material: titanium & steel

control system: pulse width control

working frequency: 1520μs / 330hz

operating voltage: dc 6.0-8.4v

operating temperature range: -10 to +60 degree

operating speed (6.0v): 0.08 sec/60 degrees at no load

operating speed (7.4v): 0.06 sec/60 degrees at no load

operating speed (8.4v): 0.055 sec/60 degrees at no load

stall torque (6.0v): 17.0 kg/cm (236.1 oz/in)

stall torque (7.4v): 20.0 kg/cm (277.7 oz/in)

stall torque (8.4v): 22.0 kg/cm (305.5 oz/in)

potentiometer drive: direct drive

dimensions: 40x20x38.0 mm / 1.57x0.79x1.49 in

weight: 70.0 g (2.47 oz)

connector wire length: jr 300 mm
