SRT CH635S HV Coreless Servo for 1/10 Electric/Nitro / 1/8 Electric GP/Nitro GP/GT

KEY FEATURES


& Incredible efficiency and low power consumption

& Supporting SFR, SUR, SXR multiple ultra high speed modes

& HD 4096 resolution

& 25T output shaft

& 1-Year limited warranty

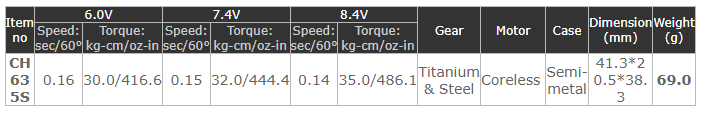

PRODUCT SPECIFICATIONS


type: digital

bearing: dual

motor type: coreless

gear type: metal

gear material: titanium & steel

control system: pulse width control

working frequency: 1520μs / 330hz

operating voltage: dc 6.0-8.4v

operating temperature range: -10 to +60 degree

operating speed (6.0v): 0.16 sec/60 degrees at no load

operating speed (7.4v): 0.15 sec/60 degrees at no load

operating speed (8.4v): 0.14 sec/60 degrees at no load

stall torque (6.0v): 30.0 kg/cm (416.6 oz/in)

stall torque (7.4v): 32.0 kg/cm (444.4 oz/in)

stall torque (8.4v): 35.0 kg/cm (486.1 oz/in)

potentiometer drive: direct drive

dimensions: 40.7x20.5x38.5 mm / 1.6x0.8x1.51 in

weight: 75.0 g (2.65 oz)

connector wire length: jr 300 mm
