SRT CH620S HV Coreless Servo for 1/10 Electric/Nitro / 1/8 Electric GP/Nitro GP/GT

KEY FEATURES

& Incredible efficiency and low power consumption

& Supporting SFR, SUR, SXR multiple ultra high speed modes

& HD 4096 resolution

& 25T output shaft

& 1-Year limited warranty

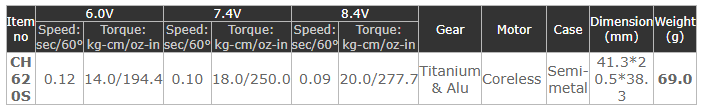

PRODUCT SPECIFICATIONS


type: digital

bearing: dual

motor type: coreless

gear type: metal

gear material: titanium & alu

control system: pulse width control

working frequency: 1520μs / 330hz

operating voltage: dc 6.0-8.4v

operating temperature range: -10 to +60 degree

operating speed (6.0v): 0.12 sec/60 degrees at no load

operating speed (7.4v): 0.10 sec/60 degrees at no load

operating speed (8.4v): 0.09 sec/60 degrees at no load

stall torque (6.0v): 14.0 kg/cm (194.4 oz/in)

stall torque (7.4v): 18.0 kg/cm (250.0 oz/in)

stall torque (8.4v): 20.0 kg/cm (277.7 oz/in)

potentiometer drive: direct drive

dimensions: 41.3x20.5x38.3 mm / 1.63x0.81x1.51 in

weight: 69.0 g (2.43 oz)

connector wire length: jr 300 mm
