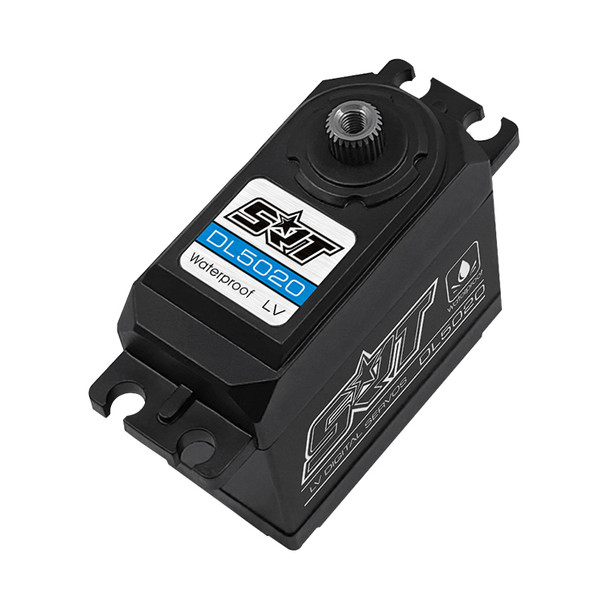

SRT DL5020 LV Digital Waterproof Servo for 1/10 Crawler / Boat

KEY FEATURES


& Incredible efficiency and low power consumption

& NMB dual main bearings

& Wide range of application scenarios

& Waterproof function

& 25T output shaft

& 1-Year limited warranty

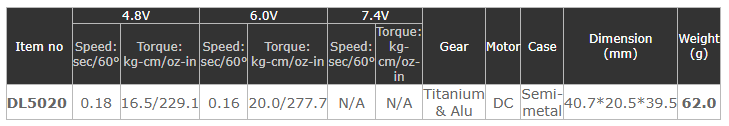

PRODUCT SPECIFICATIONS


type: digital

bearing: dual

motor type: DC

gear type: metal

gear material: titanium & alu

control system: pulse width control

working frequency: 1520μs / 330hz

operating voltage: dc 4.8-6.0v

operating temperature range: -10 to +60 degree

operating speed (4.8v): 0.18 sec/60 degrees at no load

operating speed (6.0v): 0.16 sec/60 degrees at no load

stall torque (4.8v): 16.5 kg/cm (229.1 oz/in)

stall torque (6.0v): 20.0 kg/cm (277.7 oz/in)

potentiometer drive: direct drive

dimensions: 40.7x20.5x39.5 mm / 1.6x0.8x1.55 in

weight: 62.0 g (2.19 oz)

connector wire length: jr 300 mm
