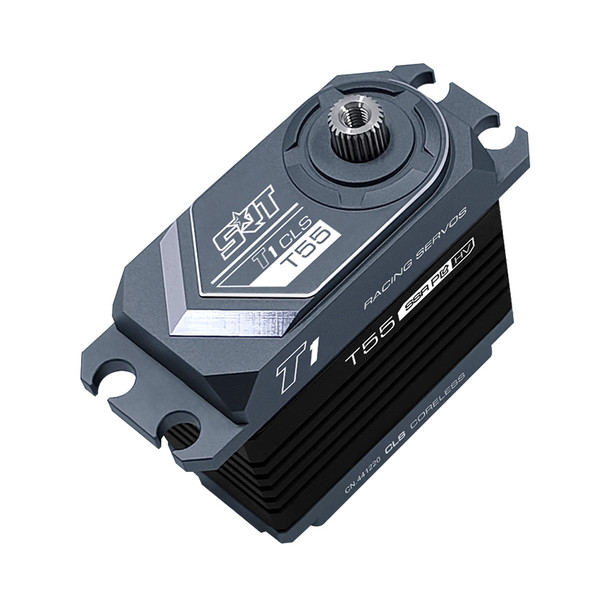

SRT T55 HV Coreless Servo for 1/10 Crawler / 1/8 Crawler / Air Plane

KEY FEATURES


& Superior holding torque

& Incredible efficiency and low power consumption

& CNC Machined aluminum case for exceptional cooling

& Supporting SXR, SUR, SR, SFR multiple ultra high speed modes

& 25T output shaft

& 1-Year limited warranty

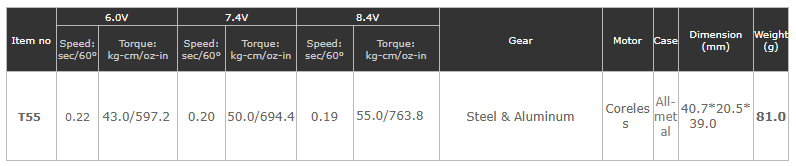

PRODUCT SPECIFICATIONS


type: digital

bearing: dual

motor type: coreless

gear type: metal

gear material: steel & alu

control system: pulse width control

working frequency: 1520μs / 330hz

operating voltage: dc 6.0-8.4v

operating temperature range: -10 to +60 degree

operating speed (6.0v): 0.22 sec/60 degrees at no load

operating speed (7.4v): 0.20 sec/60 degrees at no load

operating speed (8.4v): 0.19 sec/60 degrees at no load

stall torque (6.0v): 43.0 kg/cm (597.2 oz/in)

stall torque (7.4v): 50.0 kg/cm (694.4 oz/in)

stall torque (8.4v): 55.0 kg/cm (763.8 oz/in)

potentiometer drive: direct drive

dimensions: 40.7 x 20.5 x 39.0 mm / 1.60 x 0.81 x 1.54 in

weight: 81.0 g (2.86 oz)

connector wire length: jr 300 mm
